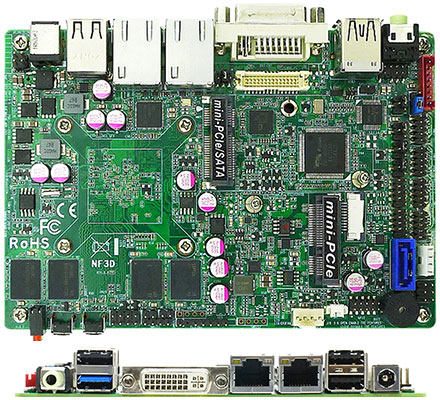

Jetway NF3D-2930 (Intel Bay Trail)

Jetway NF3D-2930 (Intel Bay Trail)

  • Intel® Bay Trail D/M/I Processor
  • DDR3L 1333MHz Single Channel, Onboard 2GB/4GB System Memory
  • 1 * Serial ATAII (3Gb/s) Device
  • Support on-board eMMC
  • 1 * 24-bits Dual Channel LVDS header
  • 7 * USB 2.0 + 1 * USB 3.0
  • DVI-I Output
  • 2 * Intel i211AT Gigabit LAN
  • 9~24V wide range DC-input


Share

298.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart

SSD (mSATA):
Form Factor
Dimensions – 3.5” (5.8-in * 4.0-in, 148 * 102mm)
Processor System
CPU – Intel® Bay Trail-D/M/I ( Default is J1900 Processor)
Core Number – J1900 : 4
Max Speed – J1900 : 2.42GHz
L2 Cache – J1900 : 2MB
Chipset – SoC
BIOS – AMI 64Mb Flash ROM
Expansion Slot
PCI – 0
Mini-PCIe – 1 (full size, shared with mSATA) + 1 (half size)
mSATA – 1 (shared with full size Mini PCIe)
PCIe – 0
eMMC – 1 (default 16GB/32GB)
M.2 – 0
Memory
Technology – Onboard DDR3L 1333MHz SDRAM
Max. – 4GB (default 4GB)
Socket – N/A
Graphics
Controller – Intel® HD Graphics
VRAM – Shared Memory
VGA – 1 (share with DVI-I)
LVDS – 1 * onboard 24-bits Dual channel connector
eDP 1.3 – 0
DVI-I – 1
MultiDisplay – Dual Display
Ethernet
Ethernet – 10/100/1000 Mbps
Controller – 2 * Intel Gigabit LAN (2 * i211AT)
Connector – 2 * RJ 45
Audio
CODEC – Realtek ALC662 HD Audio Codec
Channel – 2 CH
SATA
Max Data Transfer Rate – 1 * SATAII (3.0Gb/s)
Rear I/O
VGA – 0
DVI-I – 1
Ethernet – 2
USB – 4 (1 * USB 3.0 + 3 * USB2.0)
Audio – 1 (Line-out)
Serial / Parallel – 0
PS2 – 0
DC-input – 1 (9~24V)
Internal Connector
USB – 4 * USB 2.0
PS/2 – 1
LVDS / inverter – 1
HDMI – 0
Serial – 4 (4 * RS-232 with 5V/12V selectable header)
SATA – 1 * SATAII (3.0Gb/s)
mPCIe – 1 (full size, shared with mSATA) + 1 (half size)
mSATA – 1 (shared with full size mPCIe)
M.2 – 0
GPIO – 1 (8 bit)
Chassis intrusion – 1
Audio Header – 1
SMBUS/ I2C – 1
AT mode – 1
TPM Header – 0
Others – 0
Watchdog Timer
Output – From Super I/O to drag RESETCON#
Interval – 256 segments (0sec ~ 255min)
Power Requirements
Input PWR – +9~24V DC-In jack (2-pin PWR Con)
Power On AT/ATX Supported
– AT : Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
Certifications
Certifications – CE, FCC, RoHS, REACH
Environment
Temperature – Operating: 0°C – 60°C
– Storage: -20°C – 85°C
