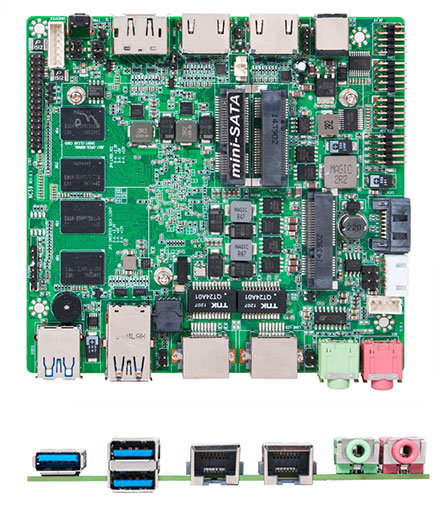

Jetway NC59-U3160-4G (Intel Braswell)

Jetway NC59-U3160-4G (Intel Braswell)

  • Onboard SAMSUNG 4G 1600/1333MHz DDR3L Memory
  • Support 2*PCI Express Gigabit LAN
  • Support 3*USB3.0 Ports, 2*COM ports
  • Support SIM Card Socket
  • Support 2*HDMI+1*DP
  • Power onboard (wide voltage input :9~24V)


Share

309.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart

SSD (mSATA):
 Form Factor
Dimensions – uTX (112 * 117mm)
 Processor System
CPU – INTEL® Braswell-D J3160 2.24GHz QC CPU
Core Number – Quad Cores
Max Speed – 2.8GHz
L2 Cache – 512KB
Chipset – INTEL® Braswell-D J3160 SOC
BIOS – AMI 64Mb Flash ROM
 Expansion Slot
PCI – 0
Mini-Pcle – 2 (full size +Half size)
mSATA – 1 (full size)
PCIe – 0
CFast Card Socket – 0
SIMCardSocket – 1
 Memory
Technology – Onboard SAMSUNG 1600/1333MHz DDR3L Memory
Max. – 4GB
Socket – 0
 Graphics
Controller – INTEL® Braswell-D J3160 SOC
VRAM – Share Memory
VGA – 0
LVDS – 0
HDMI – 2
DVI‐D – 0
Display Port – 1
MultiDisplay – 0
 Ethernet
Ethernet – 10/100/1000 Mbps
Controller – GbE LAN: Realtek® RTL8111G
Connector – 2 * RJ 45
 SATA
Max Data Transfer Rate – 1 * SATAIII (6.0Gb/s)
 Rear I/O
VGA – 0
DVI‐D – 0
HDMI – 2
DisplayPort – 1
Ethernet – 2
USB – 3 * USB 3.0
Audio – 2 (MIC / Line-out)
Serial – 0
eSATA – 0
PS2 – 0
DC-input – 1 * DC-in
 Internal Connector
USB – 1* USB 2.0
PS/2 – 1
LVDS / inverter – 1
DisplayPort – 0
Serial – 2 ( RS232)
SATA – 1 * SATAIII (6.0Gb/s)
mPCIe – 2 (full size + half size)
mSATA – 1 (full size)
GPIO 8-bit – 1 (4 * IN +4 * OUT)
SIM Card – 1
Audio Header – 1 (3W speaker)
TPM – 0
 Watchdog Timer
Output – From Super I/O to drag RESETCON#
Interval – 256 segments, 0,1,2…255sec/min
 Power Requirements
Input PWR – +9~24V DC-in (JACK)
Power On AT/ATX Supported
‐ AT : Directly PWR on as Power input ready
‐ ATX: Press Button to PWR on after Power input ready
Certifications
Certifications – CE, FCC, RoHS, REACH
 Environment
Temperature – Operating: 0°C – 60°C
– Storage: -20°C – 85°C
Data sheet Download (PDF)
Data sheet Print view
