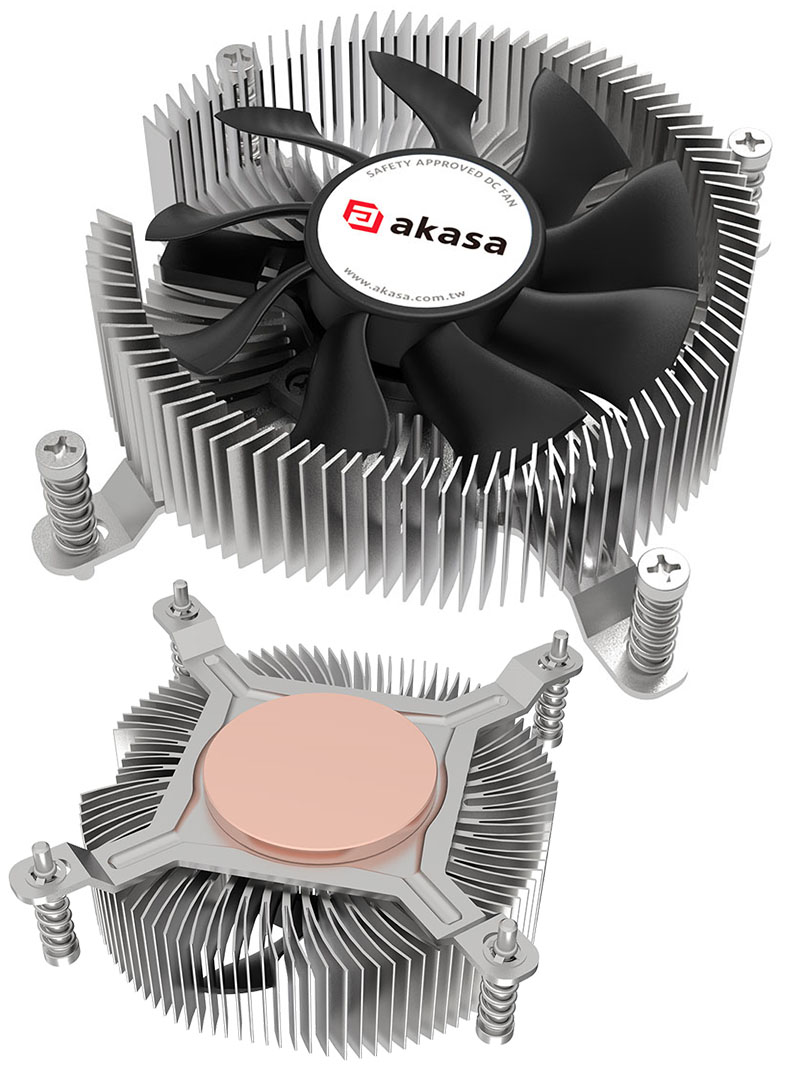

AKASA Low Profile heatsink/fan f. Intel socket LGA 1700/1851, 73W TDP (AK-CC6616HP01)

AKASA Low Profile heatsink/fan f. Intel socket LGA 1700/1851, 73W TDP (AK-CC6616HP01)
  • High quality !
  • Intel LGA1700 / LGA1851 !
  • 29,92 mm !
  • AK-CC6616HP01 !

Low-profile 29.92mm heatsink with embedded fan provides low-noise compact cooling solution for Intel® LGA1700 and LGA1851 processors up to 73W TDP in thin mini-ITX and SFF chassis.

  • Ultra lo-profile CPU cooling at 26.92 mm height
  • Embedded 75mm PWM fan with long life Enter bearing
  • Intelligent PWM and silent fan
  • New and easy mounting design
  • Multi-directional fins and larger core for maximum system cooling and Air Flow
  • 43,6 mm Core Diameter
  • Designed for low-powered processors up to 73W TDP


Share

24.95 EUR
incl. 19% VAT, plus shipping
Available in 3-7 days

Add to cart
Socket Type Intel® LGA 1700 / LGA 1851
Cooler Dimension 87.2 x 85.2 x 29.92 mm (W x D x H), 306g
Heatsink Material Aluminium fins with copper core
Thermal Design Point (TDP) Support 73W
Installation Metal screws and retention plate
Fan Dimension 75 x 10mm
Fan Speed 600-3000 RPM (PWM controlled)
Max Airflow 23.45 CFM
Max Air Pressure 3.76 mm-H20
Max Noise Level 28,71 dB(A)
Current Rating 0.19A
Voltage Rating 12V DC
Bearing Type EBR Bearing
Fan Life Expectancy 50,000 hours / 25°C
Fan Connector 4-Pin PWM
Product Code AK-CC6616HP01
Data sheet Download (PDF)
Data sheet Print view
